For use with coating machines coating rods

Solve coating-related issues — such as uneven thickness, defects and material waste — to ensure precise and efficient coating processes.

Coating Rods Design and Manufacturing

By adopting proprietary technology, we lower the friction coefficient between the grooved surface and sizing roller. This reduces the driving torque of the coating rod and prolongs the service life of both sizing bar and sizing roller.

Under the same bar-to-roller pressure, our design optimizes film and paper coating quality and minimizes abnormal wear of the metering rod. Utilizing the inherent properties of coating materials enhances the release performance between coating media and coating bars, effectively lowering groove blockage risks.

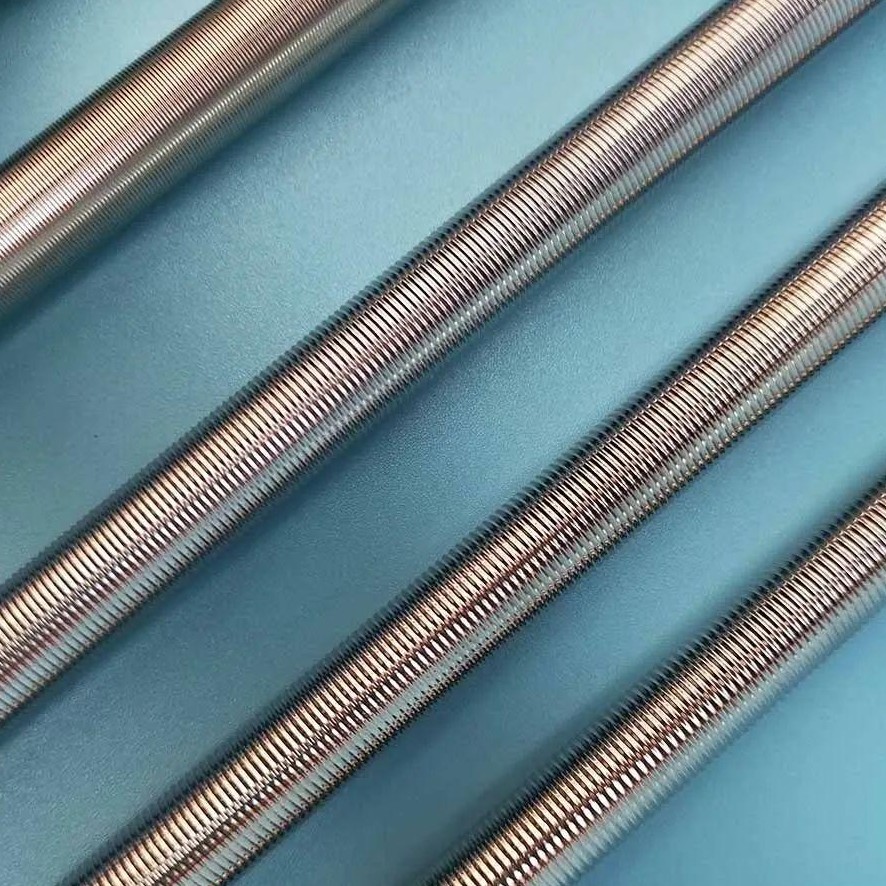

We supply grooved coating rods in a full range of specifications tailored to customer production needs, enabling accurate adjustment of coating weight and stable film quality for different application demands.

Coating Rods Specifications and Models

* Product Dimensions

HM rods are available in diameters of 9.83mm (9.75), 10mm, 12mm, 12.7mm, 13.65mm, 15mm, 16mm, 18mm, 20mm, 25mm, 30mm, and 35 mm.
HM wire rods can be manufactured up to 13 m in length.

＊Groove Selection

Various groove types are available.

＊Product Testing and

Optimization Tools
As manufacturing processes evolve, groove types are continuously updated and optimized to meet diverse customer requirements.

We continuously monitor how the metering rods are used in our customers’ equipment, allowing us to refine product details based on customer feedback. This improves the compatibility between the metering rods and the equipment, ensuring optimal performance.

Applications of HM Coating Rods

We adopt proprietary technology to reduce the friction coefficient between grooved surfaces and sizing rollers.

It lowers driving torque and extends the service life of sizing bars and rollers.

Under identical rod-to-roller pressure, our design optimizes coating film and paper quality.

It also reduces abnormal wear of the metering rod.

We utilize coating material properties to boost release performance between coating media and coating rods.

This prevents groove blockage and guarantees stable coating operation.

Coating Rods Quality and Troubleshooting

Coating rods evenly coat base paper, cardboard and film surfaces.

It ensures consistent layers for subsequent coating procedures.

It enhances paper surface performance and coating uniformity.

It also improves the appearance and printability of coated paper, supporting high-quality paper and film production.

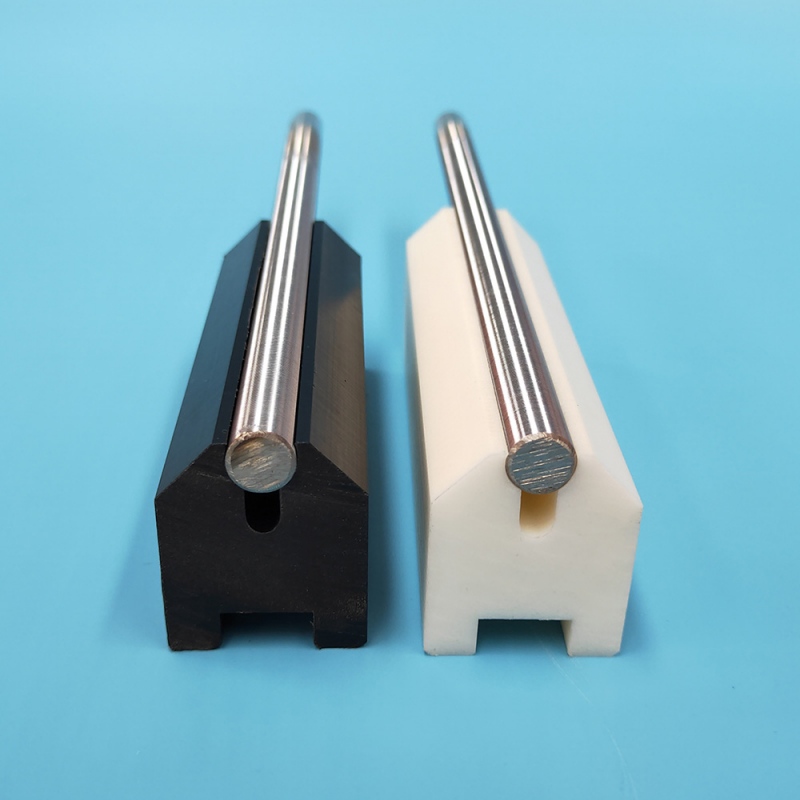

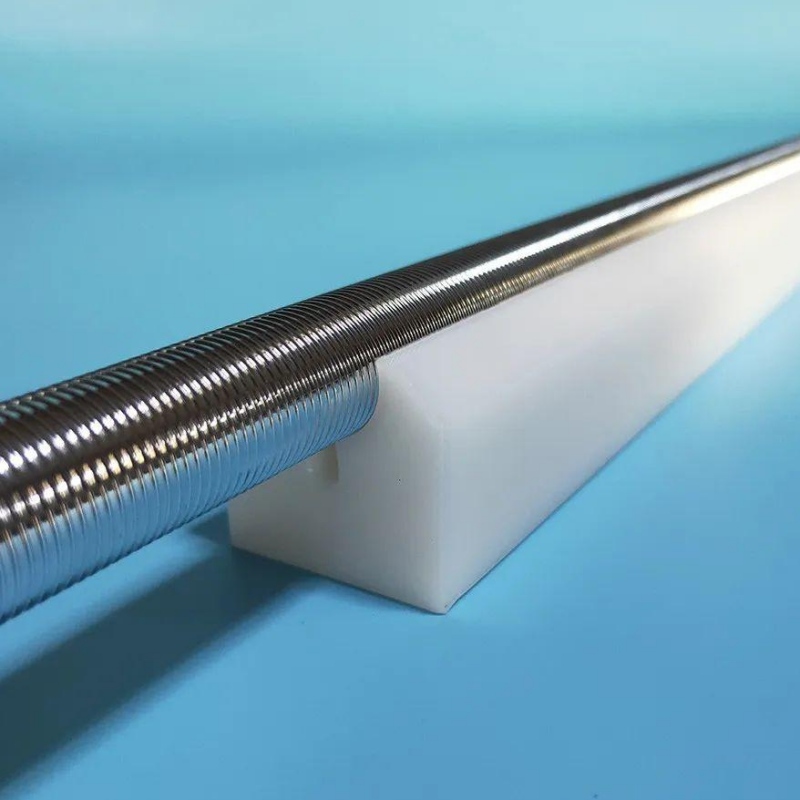

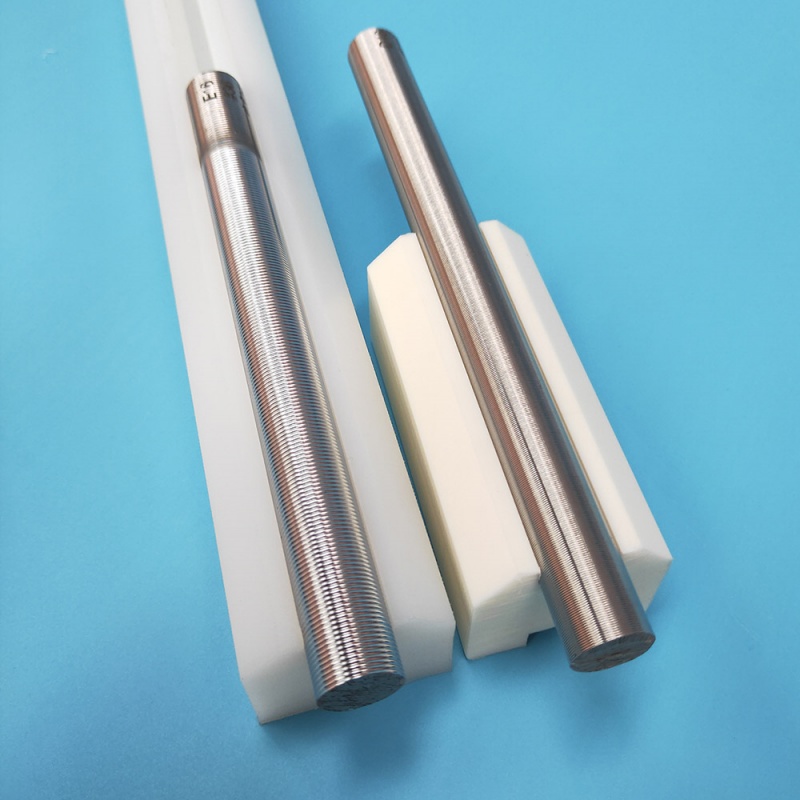

The metering bar coating system includes four core parts: metering bar, coating roller, coating tank and drive control system.

Solve Your Coating Challenges

We provide full customization to satisfy diverse customer application needs, adapting perfectly to various working conditions with coating rods.

For adhesive coating control, our professional R&D team keeps testing and optimization to deliver mature and reliable application solutions.

All metering rods are made of high-grade A stainless steel.

We use finite element analysis to simulate actual working conditions via accurate mathematical modeling.

We optimize load performance and structural deformation before production.

This ensures every metering rod features stable quality and dependable performance.

Latest News

The performance and operational reliability of papermaking machine components depend on a wide range of factors. Comprehensive evaluation of these factors is essential for proper material selection and component specification.

Key considerations include:

Mechanical load, thermal load, operating temperature, design requirements, dimensional accuracy and tolerances

We provide professional material selection recommendations tailored to your specific working conditions. Feel free to contact us via the email address shown at the top of our page.
